OT-301 Position Sensing Amplifier. Plug-And-Play Convenience And Precision.
The OT-301 Position Sensing Amplifier is the easiest, most precise way to process the current output from any position sensing detector (PSD) on the market.
Plug-And-Play... Out Of The Box.
truly plug-and-play, the OT-301 eliminates the hassle of having to design and build a custom amplification solution. Simply plug in the detector, switch on the power, and you're ready to go.
The benefit is greater convenience, efficiency and productivity... plus 100% compatibility with your future position sensing needs. The OT-301 pays for itself in no time.
- X, Y Analog Position Output Voltages
- Sum Output
- Wide Dynamic Range: 0.1 μA to 1.5 mA
- DC to 15kHz
- Compatible With All Position Sensing Detectors
- Zero Offset/Nulling
- Calibration Adjust
- Automatic Detector Bias
- Position Independent of Beam Intensity
Any Application... Any Detector.
From laser beam alignment, to beam centering, to mirror stabilization, the OT-301 is ideal for one- and two-dimensional absolute optical positioning or precision centering and nulling requirements. Read the X-Y position output and SUM output from duolateral, tetralateral, single axis, quadrant and bi-cell PSDs.
Four transimpedance Amplifiers.
Four transimpedance amplifier channels and precision signal processing electronics deliver the performance necessary for close-tolerance angle, surface uniformity, flatness, parallelism and straightness measurement.
X, Y Analog Output That's Directly Proportional To Beam Position.
The photocurrent generated from the position sensing detector is processed by the four-channel amplifier system using a position sensing algorithm. The result is X and Y analog outputs that are directly proportional to beam position-independent of changes in beam intensity.
- Universal PSD Compatibility
- One-Dimensional PSD
- Common Anode
- Common Cathode
- Two-Dimensional PSD
- Tetralateral Common Anode
- Tetralateral Common Cathode
- Pin Cushion Tetralateral-Silicon or Germanium
- Quad and Bi-Cell
- Common Anode
- Common Cathode
Six Gain Settings: 0.1 μA to 1.5 mA.
Six gain settings accommodate input current ranges from 0.1 μA to 1.5 mA with a frequency response to 15 kHz. A convenient ZERO adjust enables you to electronically move the zero to a relative position on the PSD. A CAL adjust allows calibration to absolute position.
So reliable is the OT-301, we back it with a comprehensive lifetime warranty... at no additional charge.

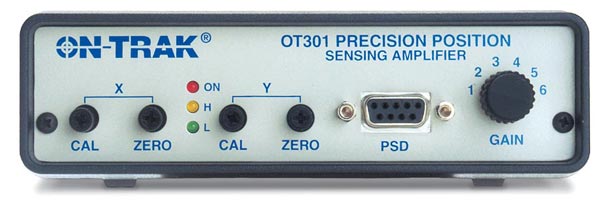

|Gain:||transimpedance gain 4x103 V/A to 4x106 V/A
Input current range 0.1μA to 1.5mA.
|On:||Power on Indicator.|
|H:||Input optical power exceeds range selected.||X,Y Cal:||Gain potentiometers to allow calibration of voltage output in terms of displacement (±10% of reading).|
|L:||Input optical power lower than range selected. Set range switch at a position where both H/L indicators are off.||X,Y ZERO:||Enables the user to electronically move the zero to a relative position on the PSD (±1V each axis).|
|PSD:||DB9 Position Sensing Detector Input.|
|X Out:||Normalized X axis output (± 10V).||CAL/ZERO:||CAL/ZERO "ON" allows use of the X, Y, Zero and X, Y CAL features. CAL/ZERO "OFF" disables these features.|
|Y Out:||Normalized Y axis output (± 10V).|
|SUM:||Total amplified detector output proportional to light intensity (0-6V).||ON/OFF:||Power ON/OFF.|
transimpedance Gain (V/A) 4 x 103 to 4 x 106
Input Current Range 0.1 μ to 1.5 mA
Position X, Y ± 10V
Sum 0 - 6V
Zero Offset (Offset Null) ± 1V Each Axis
Calibration Adjust ± 10% of reading
Detector Bias 0V ± 5V (depending on detector)
Linearity ± 0.1%
Frequency Response DC to 15 kHz (range dependent)
G1 4 x 103 V/A 2.50 x 10-4 A/V 15 kHz
G2 1.6 x 104 V/A 6.25 x 10-5 A/V 15 kHz
G3 6.4 x 104 V/A 1.56 x 10-5 A/V 5 kHz
G4 2.56 x 105 V/A 3.90 x 10-6 A/V 1.25 kHz
G5 1.024 x 106 V/A 9.77 x 10-7 A/V 310 Hz
G6 4 x 106 V/A 2.50 x 10-7 A/V 80 Hz
Output Connectors BNC
Input Connector 9 Pin D Sub (DB9)
Power Requirement± 12V DC @ 300mA (AC Adapter)
Dimensions 1.5 x 5.5 x 6.00 inches (H x W x D)
